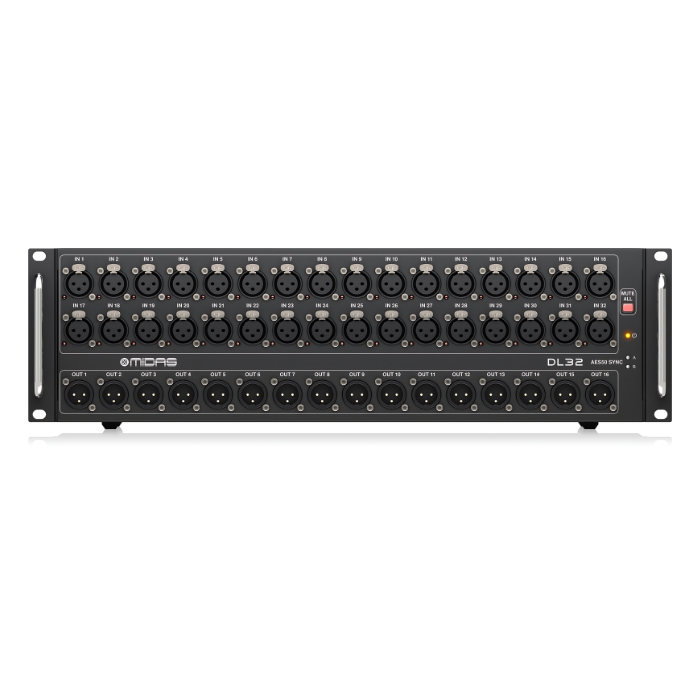

Midas DL32 Stagebox I/O Interface

32 Input, 16 Output Stage Box with 32 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to Turbosound iQ Series loudspeakers and the Behringer POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.

FEATURES:

• 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

• 16 electronically balanced low impedance line level outputs

• ULTRANET personal monitoring system connectivity for in-ear applications

• Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications

• Two AES-3 ports (AES/EBU),e.g. for directly connecting PA system controllers with digital inputs

• Remote operation up to 100 m via CAT5/5e cable

• MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices

• Features Neutrik etherCON * AES50 and ULTRANET network ports

• Rugged 3U rackmount chassis for durability in portable applications

• Auto-ranging universal switch-mode power supply

• Mute-All-Inputs function for quietly patching any inputs on stage
