PRO-CO MS-2 MIC SPLITTER
PRO-CO MS-2 MIC SPLITTER
- Price listed is DAILY RENTAL rate.

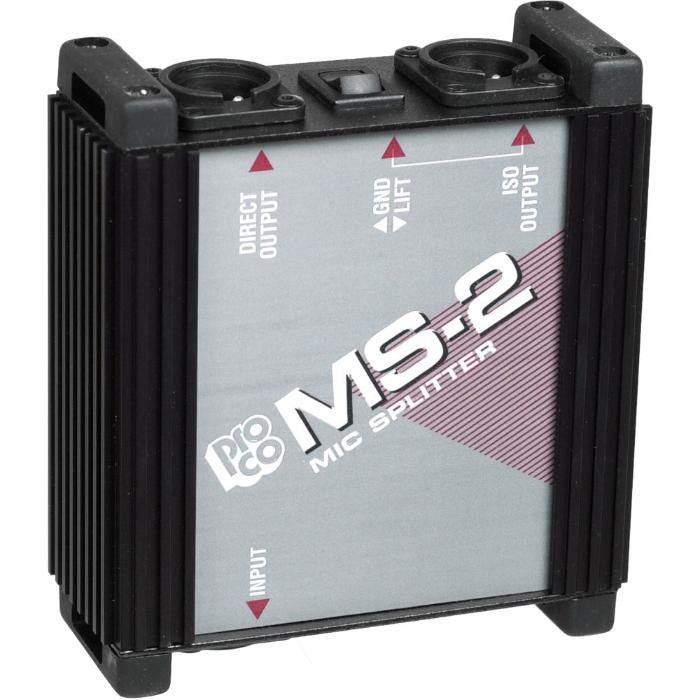

The Pro Co TradeTools MS2 Mic Splitter splits a signal from a low impedance microphone (or similar source) into two outputs enabling two microphone preamplifiers to be fed from one source. Some applications include musicians’ on-stage monitoring live recording ENG use at press conferencesand videotaping of lectures public speeches etc. It can also be used simply as an isolation transformer for long microphone lines feeding unbalanced inputs or for any audio signal up to 0 dBv (.775 volt). Transformer isolation in such situations minimizes interference from EMI/RFI and ground loops. The transformer-isolated feed retains the advantage of common-mode noise rejection inherent in the use of balanced lines.
The MS2 is fitted with standard 3-pin XLR-type connectors for INPUT DIRECT OUTPUT and ISOLATED OUTPUT so hookup requires only standard Live Sound > Accessories & Cables > Microphone Cables. The use of the Pro Co MBT-1 transformer allows the MS2 to provide a floating low-impedance output with wide flat frequency response ultra-low distortion and minimal ringing or overshoot to degrade transient response. The transformer’s dual electrostatic shields and GND/LIFT switch provide isolation and buzz-free operation in virtually any environment.
The MS2’s ruggedly constructed “Uni-box” enclosure is formed of extruded aluminum side channels and16-gauge steel top bottom and end plates and is designed to protect switches and connectors from accidental damage. The use of steel also provides excellent magnetic shielding for the transformer from EM/RF fields. Top-quality connectors and switches provide troublefree service even in abusive situations such as remote broadcast and recording operations.
Features:
- Provides 2-way Split for Low Impedance Microphone
- Great for Musicians' Monitoring and Recording
- Uses Include Press Conferences and Speeches
- Connects with Standard Microphone Cables
- High Quality Transformer-Isolated Output
- Rugged Pro Co Uni-Box Construction Provides Protection and EMI/RFI Shielding
