SOUND DEVICES MIXPRE-D COMPACT FIELD MIXER

The MixPre-D Compact Field Mixer from Sound Devices is a versatile audio mixer built for the digital age. Based on the popular MixPre, the "D" in the name indicates the extensive digital technology that's been incorporated into the mixer. The MixPre-D features a pair of studio-grade mic/line XLR inputs with limiters, high-pass filters, and phantom power. The inputs can be linked in standard or MS mode for stereo recordings. These options are configured via easy-to-use front panel controls.

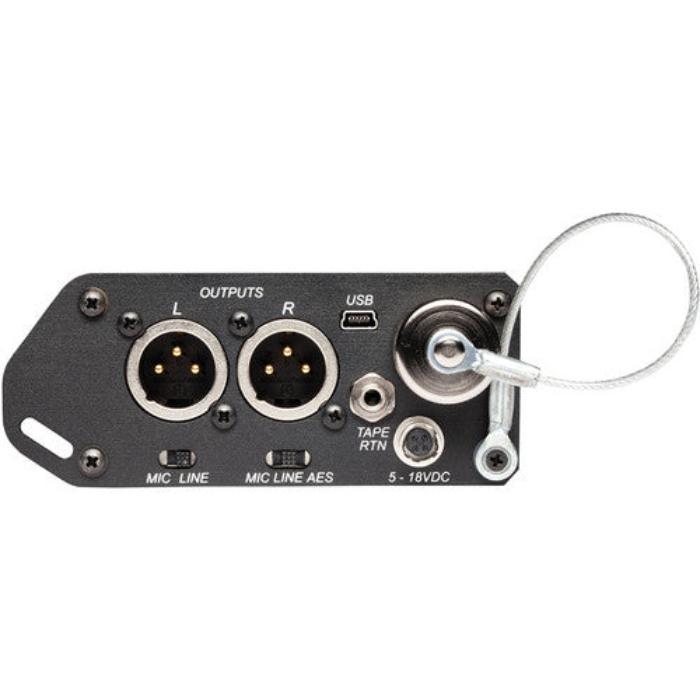

The MixPre-D puts a heavy emphasis on output, due to the increasing number of cameras and devices being used in professional productions. It offers a pair of mic/line XLR outputs, one of which can also be switched to AES digital output. There is a TA3 consumer mic level output, ideal for DSLR-type inputs, plus a 3.5mm aux output and a 1/4" headphone jack for monitoring. A 24-bit class-compliant USB streaming output is also offered, providing internet connection with Mac, Windows, Linux, and select iOS devices, plus computer audio in the MixPre-D headphones.

Key Features

• Compact Design
• Mic/Line XLR Inputs with Phantom
• Limiters and High Pass Filters
• Standard or MS Mode Linking
• Slate Mic and Tone Oscillator
• Mic/Line/AES Selectable Digital Outputs
• 24-bit USB Streaming Output
• Headphone Monitoring
• 16-Segment GaN LED Output Meter
• Battery or External Power
